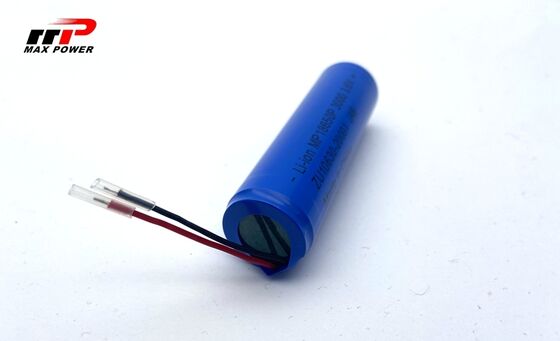

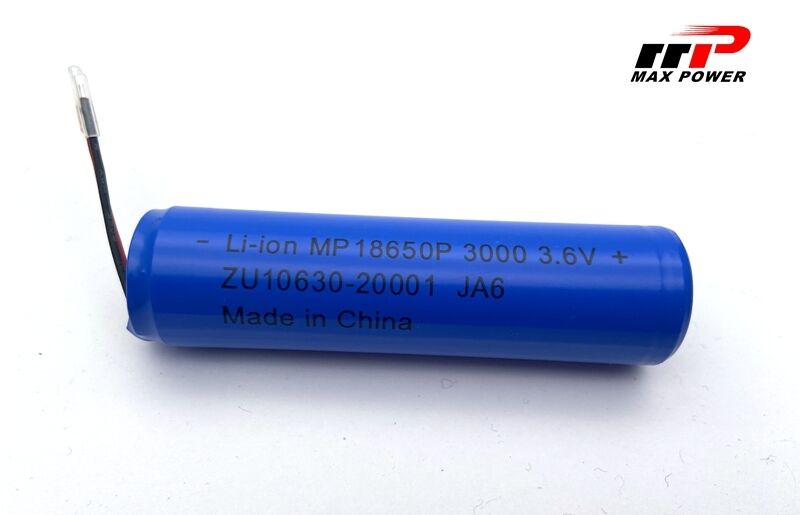

3000mAh 3.6V 18650 Lithium Ion Batteries BIS IEC2133 CB
3000mAh 3.6V 18650 Lithium Ion Batteries BIS IEC2133 CB
기본 특성
원산지:
중국
브랜드 이름:
MaxPower
인증:
CE UL CB UN38.3 MSDS IEC ENC BIS
모델 번호:
18650 3000mAh
부동산 거래
최소 주문 수량:
1000PKS
가격:
협상 가능
제품 요약
18650 3000mAh 3.6V Rechargeable cylindrical Lithium Ion Batteries 3.6V CE BIS IEC2133 CB Lithium Ion Battery 18650 3000mAh 3.7V (series models are as below) High top Or Flat Top is available Normal type Li-ion Cell or High Rate 5C 10C 25C 20C with customer design The logo with MaxPower or OEM brand ...
제품 맞춤 속성
강조하다
18650 lithium ion battery 3000mAh
,3.6V rechargeable lithium battery
,BIS IEC2133 certified 18650 battery
배터리 유형:
리튬 이온 셀
용량:
3000mAH
전압:
3.6v
보장하다:
1년
수명주기:
500 사이클
내부저항:
(PTC、CID로) ≤60 mΩ
크기:
D18.4mm*H65.3mm
제품 설명
세부 사양 및 특징
18650 3000mAh 3.6V Rechargeable cylindrical Lithium Ion Batteries 3.6V CE BIS IEC2133 CB
- Lithium Ion Battery 18650 3000mAh 3.7V (series models are as below)
- High top Or Flat Top is available
- Normal type Li-ion Cell or High Rate 5C 10C 25C 20C with customer design
- The logo with MaxPower or OEM brand
- Accept the trial order around 1K with courier door to door service
- UL CE ROSH KC IEC62133 CCC UN38.3 MSDS BIS certification is aviliable for many li-ion battery models
- Original iorted 18650 cells is available MP HE4 Samsung Panosonic ETC.
- We accept the Customized battery pack and design OEM and ODM project .
Specification of the 18650 2200mAh battery:
| NO | Items | Description |
| Normal Specification | ||
| 1 | Nominal voltage | 3.6V |
| 2 | Normal capacity | 3000Ah |
| 3 | Minimum capacity | 2900Ah |
| 4 | Internal resistance | ≤30mΩ(with ptc) |
| 5 | Cell | 18650--3.6V/3000mAh |
| Standard Charge | ||
| 6 | Battery charging teerature range | 0~45℃ |
| Battery discharging teerature range | -20～60℃ | |
| 7 | Normal charge/discharge current | 0.5C(1100mAh) |
| 8 | Allowed maximum charge current | 0.5C(1500mah 10～45℃) |
| Allowed maximum discharge current | 1C(3000mah (40℃>T≥10℃) | |
| Standard Discharge | ||
| 9 | Discharge cut-off voltage | 3.0±0.05 V |
| Mechanical Characteristics | ||
| 10 | Size | Height : 65.3 mm Max Diameter :18.4mm Max |
| 11 | Weight | 65g |
| 12 | Cycle life(100%DOD) | ≥500cycle With standard charge and discharge |
| Storage | ||
| 13 | Storage Teerature&a; Humidity Range | Short: within one month -20~35℃, 45~75%RH |
| Long term: above one month -10~30℃, 45~75%RH | ||
More pics.
Application :
Torches , Flash light ,power tools , LED light , Emergency lighting, Toys , digital printer
Robot ,Medical device ,sweeper , E-Bike ,Consumer devices ETC.
Hot saling model:
| models | capactity | models | capactity | note |
| 18650 | 1200mAh | 18350 | 700mah | |
| 18650 | 1300mAh | 36600 | 7500mah | (militery use) |
| 18650 | 1500mAh | 32600 | 5000mah | (militery use) |
| 18650 | 1800mAh | 18500 | 1900mah | |
| 18650 | 2000mAh | 18500 | 1200mah | |
| 18650 | 2200mAh | 16310 | 850mah | |
| 18650 | 2500mAh | 10840 | 650mah | |
| 18650 | 2600mAh | 16650 | 1600mah | |
| 18650 | 3400mah | 14650 | 1000mah |
Regular saling models:
| No. | Type | Models | Capacity (mAh) | Nominal Voltage (V) | diameter ±0.05(mm) | Height ±0.5(mm) | |
| 1 | Lithium Cylindrical | 13490 | 650 | 3.7 | 12.9 | 48.5 | |
| 2 | Lithium Cylindrical | 14430 | 650 | 3.7 | 13.9 | 42.5 | |
| 3 | Lithium Cylindrical | 14500 | 700 | 3.7 | 13.9 | 64.5 | |
| 4 | Lithium Cylindrical | 14650 | 800 | 3.7 | 13.9 | 64.5 | |
| 5 | Lithium Cylindrical | 14650 | 1100 | 3.7 | 13.9 | 64.5 | |
| 6 | Lithium Cylindrical | 17280 | 600 | 3.7 | 16.65 | 27.5 | |
| 7 | Lithium Cylindrical | 17335 | 750 | 3.7 | 16.65 | 33.5 | |
| 8 | Lithium Cylindrical | 17500 | 1100 | 3.7 | 16.65 | 48.5 | |
| 9 | Lithium Cylindrical | 17650 | 1200 | 3.7 | 16.65 | 64.5 | |
| 10 | Lithium Cylindrical | 17650 | 1600 | 3.7 | 16.65 | 64.5 | |
| 11 | Lithium Cylindrical | 18490 | 1200 | 3.7 | 18.05 | 48.5 | |
| 12 | Lithium Cylindrical | 18490 | 1400 | 3.7 | 18.05 | 64.5 | |
| 13 | Lithium Cylindrical | 18650 | 1400 | 3.7 | 18.05 | 64.5 | |
| 14 | Lithium Cylindrical | 18650 | 1800 | 3.7 | 18.05 | 64.5 | |
| 15 | Lithium Cylindrical | 18650 | 2000 | 3.7 | 18.05 | 64.5 | |
| 16 | Lithium Cylindrical | 18650 | 2200 | 3.7 | 18.05 | 64.5 | |
| 17 | Lithium Cylindrical | 18650 | 2600 | 3.7 | 18.05 | 65.5 | |
| 18 | Lithium Cylindrical | 18740 | 1600 | 3.7 | 18.05 | 71.5 | |
| 19 | Lithium Cylindrical | 21750 | 3200 | 3.7 | 21.5 | 74.5 | |
| 20 | Lithium Cylindrical | 22430 | 2000 | 3.7 | 22.05 | 42.5 | |
| 21 | Lithium Cylindrical | 26650 | 3000 | 3.7 | 26.05 | 64.5 | |
| High Rate Series Li-ion 18650 re-chargeable battery | |||||||
| No. | Type | Models | Capacity (mAh) | Nominal Voltage (V) | diameter ±0.05(mm) | Height ±0.5(mm) | Discharge Rate(10C) |
| 1 | Lithium Cylindrical | 18650P-1100 | 1100 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 2 | Lithium Cylindrical | 18650P-1200 | 1200 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 3 | Lithium Cylindrical | 18650P-1300 | 1300 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 4 | Lithium Cylindrical | 18650CP-1400 | 1400 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 5 | Lithium Cylindrical | 18650CP-1500 | 1500 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 6 | Lithium Cylindrical | 18650CP-1600 | 1600 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 7 | Lithium Cylindrical | 18650CP-1700 | 1700 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 8 | Lithium Cylindrical | 18650CP-1800 | 1800 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 9 | Lithium Cylindrical | 18650CP-1900 | 1900 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 10 | Lithium Cylindrical | 18650CP-2000 | 2000 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 11 | Lithium Cylindrical | 18650CP-2100 | 2100 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 12 | Lithium Cylindrical | 18650CP-2200 | 2200 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
For more info please contact me freely, wish 13years experience in battery area can help you out
in your project.
