| 원래 장소: | 중국에서 만들어졌습니다 |
| 브랜드 이름: | Maxpower/OEM |
| 인증: | CB, CE, KC, ROHS,UN38.3,UL |
| 모델 번호: | 7242126 3200mah |
| 최소 주문 수량: | 1000pcs |
|---|---|
| 가격: | negociate |
| 포장 세부 사항: | 8pcs/Blister Palet, 15Bllister Pallet/CTN |
| 배달 시간: | 10-30days 재고 상황,주식 상황을 부합시킵니다 |
| 지불 조건: | L/C, T/T, Western Union |
| 공급 능력: | 200000pcs/day |
| 재료: | 리튬 폴리머 배터리, 순수한 코발트 | 크기: | 7.2*42*126mm |
|---|---|---|---|
| 전압: | 3.7V | 순 중량: | 145g |
| 용량: | 6000mAH | 저항: | ≤1.5mΩ |
| 비율: | 60C | 최대 속도: | 120C |
| 애플리케이션: | UAV, 무인 무인 항공기 |
45C High Rate Li Ion Polymer Battery Pack 7242126 3200mah 3.7V UAV drone
KC CB UL certification
1.The battery draw and size info.
2. Cell specification and safty performance.
| No | Item | Specification | Remark |
| 1 | Nominal Capacity | 3200 mAh | 0.2 C discharge |
| 2 | Minimum. Capacity | 3060mAh | 0.2 C discharge |
| 3 | Nominal Voltage | 3.7 V | |
| 4 | Charge Voltage | 4.2 ± 0.02 V | |
| 5 | Charge Current Standard charge : | 0.2C ( 640 mA) | |
| 6 | Rapid charge : | 1.0 C ( 3200 mA) | |
| 7 | Charging Time Standard charge : | 7.5 hours (Ref.) | |
| 8 | Rapid charge : | 1.5 hours (Ref.) | |
| 9 | Standard dicharge current | 640mA | |
| 10 | Cont.. Discharge Current | 120000mA | |
| 11 | Burst. Discharge Current | 45.0 C ( 144A ) | ≤ 3 S |
| 12 | Cutoff Voltage | 3.0 V | |
| 13 | Resistance | ≤ 1.5 mΩ | 1kHz AC Method |
| 14 | Weight (Approx.) | 145 g | |
| 15 | Dimensions(T.W.H.)Thickness(厚度): | 7.1 max mm | |
| 16 | Width: | 43.0 max mm | |
| 17 | Length: | 128 max mm | |
| 18 | Operating Teerature Charge : | 0 ~ 45℃ | |
| 19 | Discharge teerature : | 0 ~ 45℃ | |
| 20 | Storage Teerature | Short period less than 1month | 0℃~35℃ |
| Long period more than 1month | 10℃~25℃ |

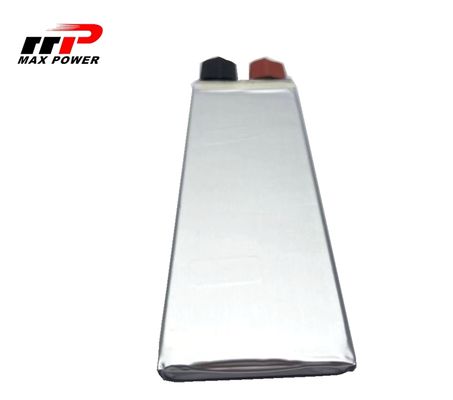

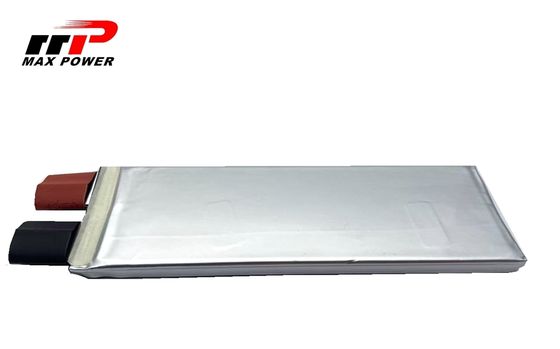

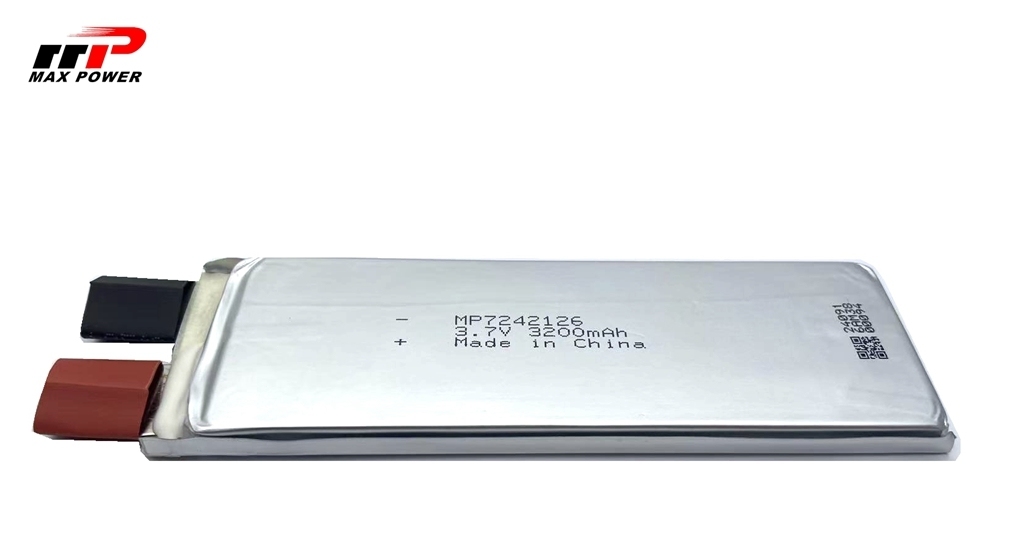

3. PIC of battery.
The application of the polymer battery:Unmanned drone, RC cars, RC boat,RC tools,Robot..
Waranty:
We give 1 year warranty. If the battery has problem coz of our quality issue, We will give replacement.
Q&A:
1. Q:How to start the cooperate?
A: Lets start with our sale orders. In 3-5days will be ready the sales, then you test.We make the standard according
the data sheet which we give.Once you confirm the quality, we can talk for further.
2. Q: How long to make the cargos?
A: Need 30day around if we dont have the stock of that model. Coz need strict test and high teerature,high voltage life ageing
as well in every single pc,
3. Q: What will be the packing?
A: We are using individual box for each battery cell and pallet packing for shipping.
For more please contact me freely, wish my 14 years in battery area experience can help you in your project.
